Installation

INSTALLATION

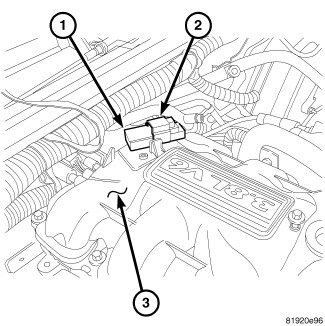

The MAP sensor (1) is installed into the rear of the upper intake manifold (3).

1. Check condition of sensor O-ring.
2. Clean dirt from MAP sensor base.
3. Push down on MAP sensor while rotating clockwise about 1/4 turn for installation.
4. Disconnect electrical connector from MAP sensor.
