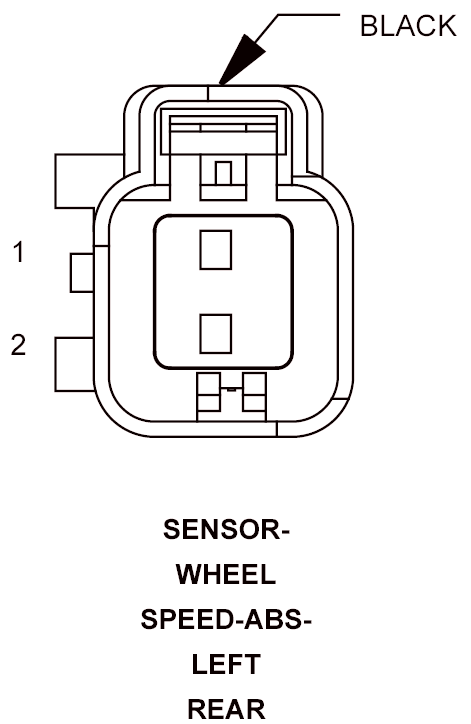

Left Rear Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-LEFT REAR - BLACK 2 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B4 18LG |
LEFT REAR WHEEL SPEED SENSOR SUPPLY |
| 2 |
B3 18LG/DB |
LEFT REAR WHEEL SPEED SENSOR SIGNAL |
