P0113-Intake Air Temperature Sensor Circuit High: Notes

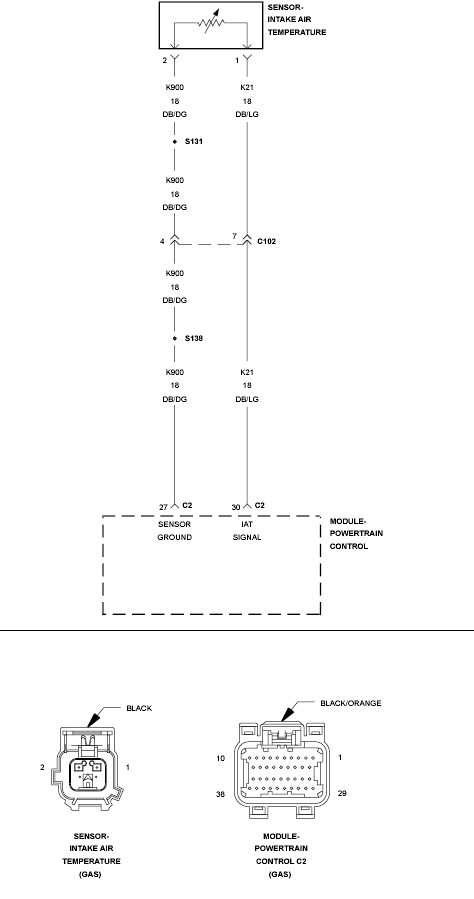

Fig 1: Intake Air Temperature Sensor Circuit

GC0131882

Courtesy of CHRYSLER LLC
