P0533-A/C Pressure Sensor Circuit High: Notes

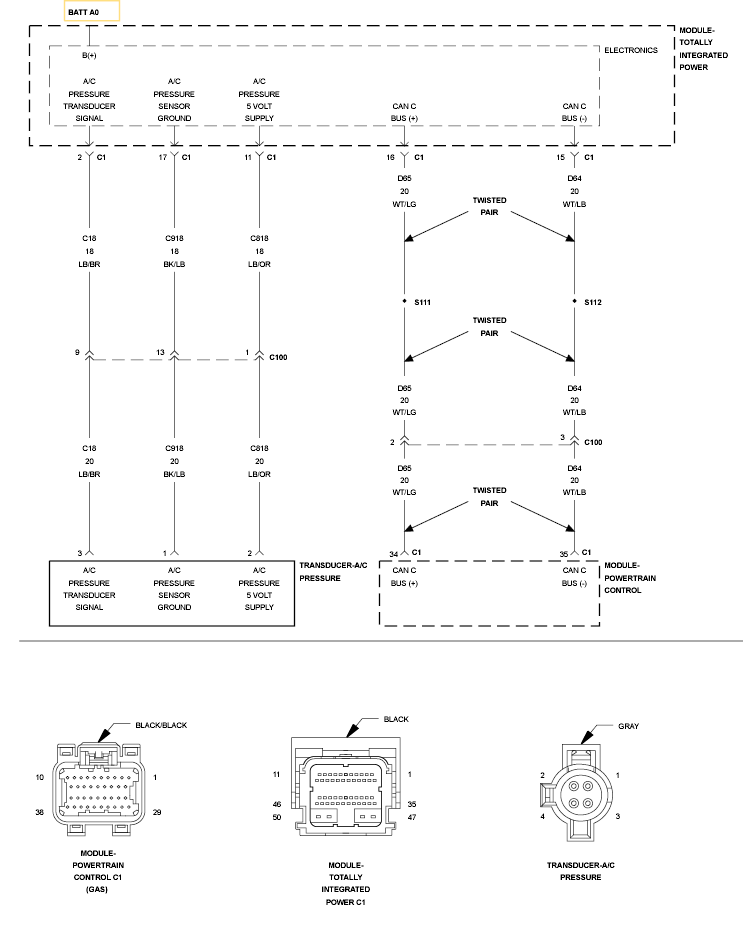

Fig 1: A/C Pressure Sensor Circuit
GC0131922Courtesy of CHRYSLER LLC
