Oil Temperature Sensor - Installation

INSTALLATION






NOTE: Apply Mopar(R) Thread Sealant with PTFE to the sensor threads before installing into the engine block.

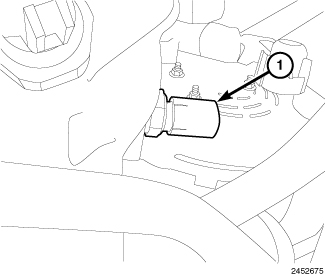

1. Install the oil temperature sensor (1).

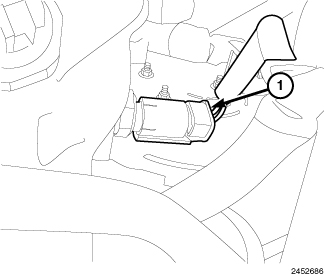

2. Connect the oil temperature sensor electrical connector (1).





3. Position the lower splash shield and install the retaining bolts (1).
4. Lower the vehicle.
5. Connect the negative battery cable.
