MOTOR, Drive Unit: Installation: Installation

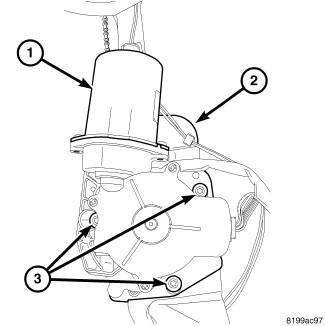

Fig 1: Three Motor Retaining Screws, Motor And Drive Unit Assembly

Courtesy of CHRYSLER LLC

Carefully line-up the motor (1) with the chain drive gear and slide the motor assembly onto the drive unit assembly (2). Be certain the gears are properly meshed.
Install the three motor retaining screws (3). Tighten the screws to 6 N.m (50 in. lbs.).

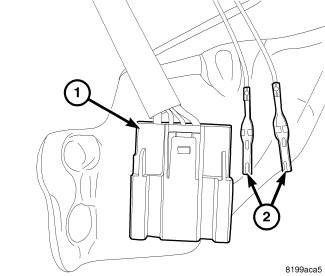

Fig 2: Wire Connector And Full Open Switch Wire Terminals
Courtesy of CHRYSLER LLC
Insert the full open switch wire terminals (2) into the liftgate drive unit connector (1) ensuring the proper terminal location as noted in the motor removal procedure.
Install the power liftgate drive unit assembly on the vehicle. See Electrical - Power Systems/Power Liftgate/DRIVE UNIT - Installation .
Connect the battery negative cable.
Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
Perform the power liftgate learn cycle. See Electrical - Power Systems/Power Liftgate - Standard Procedure .
Verify power liftgate system operation.
