Section 1 (Half Shaft): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Fig 1: CLEVIS BRACKET

Courtesy of CHRYSLER LLC

Install half shaft on the axle and through the hub/bearing. Verify half shaft has engaged.
Install shock clevis (3) on lower control arm and tighten nut to specifications.
Install upper control arm on knuckle and tighten ball joint nut to specifications.

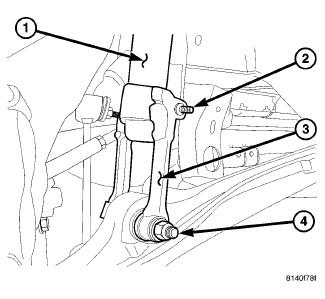

Fig 2: STABILIZER LINK
Courtesy of CHRYSLER LLC
Install tie rod end (4) on knuckle and tighten to specifications.
Install stabilizer link (3) on lower control arm and tighten to specifications.

Fig 3: CALIPER
Courtesy of CHRYSLER LLC
Install caliper (1) on caliper adapter (4) and tighten to specifications.

Fig 4: WHEEL SPEED SENSOR
Courtesy of CHRYSLER LLC
Install wheel speed sensor (1) on the hub/bearing (3).
Install half shaft hub/bearing nut and tighten to 135 N.m (100 ft. lbs.).
