Powertrain Control Module (Pcm) - Electrical Diagnostics - 545RFE Automatic Transmission
>>
DTC Troubleshooting
>>
P0711-Transmission Temperature Sensor Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

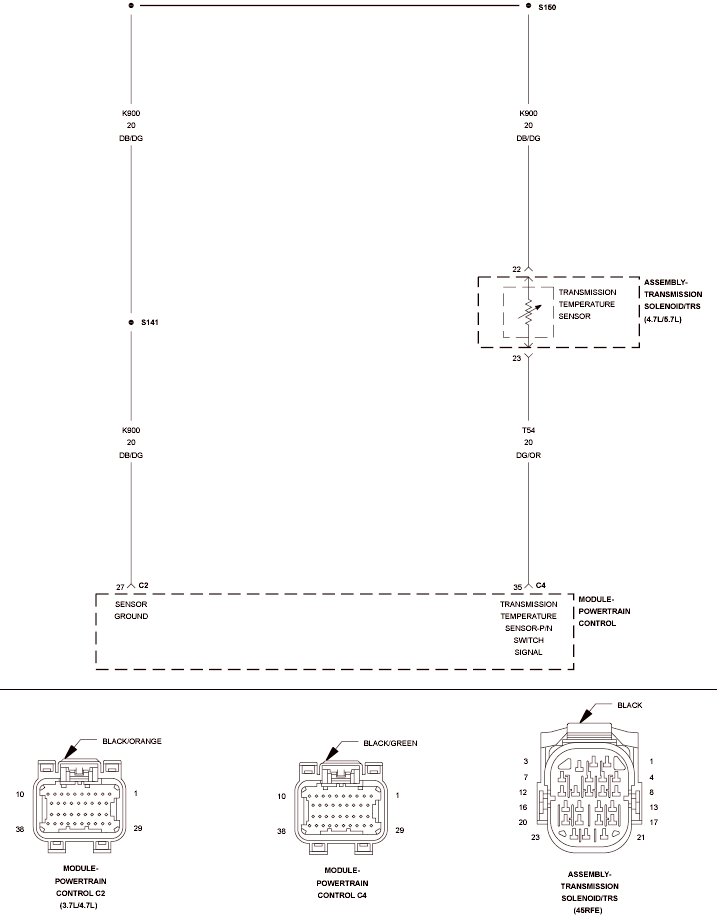

Fig 1: Transmission Temperature Sensor Pin Switch Signal Circuit Schematic
Courtesy of CHRYSLER LLC
