Grand Cherokee 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Integrated Power Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Integrated Power Module

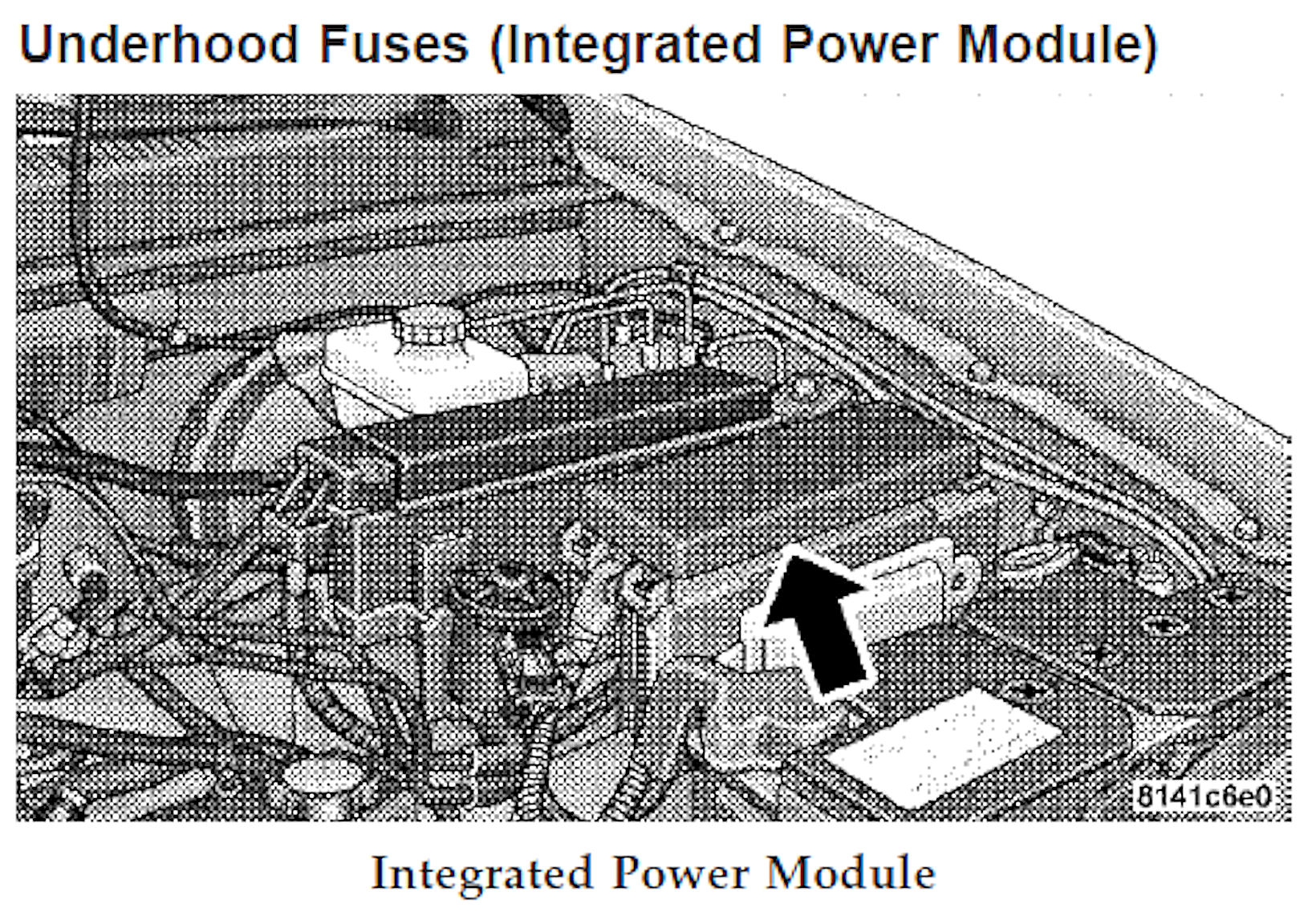

Location:

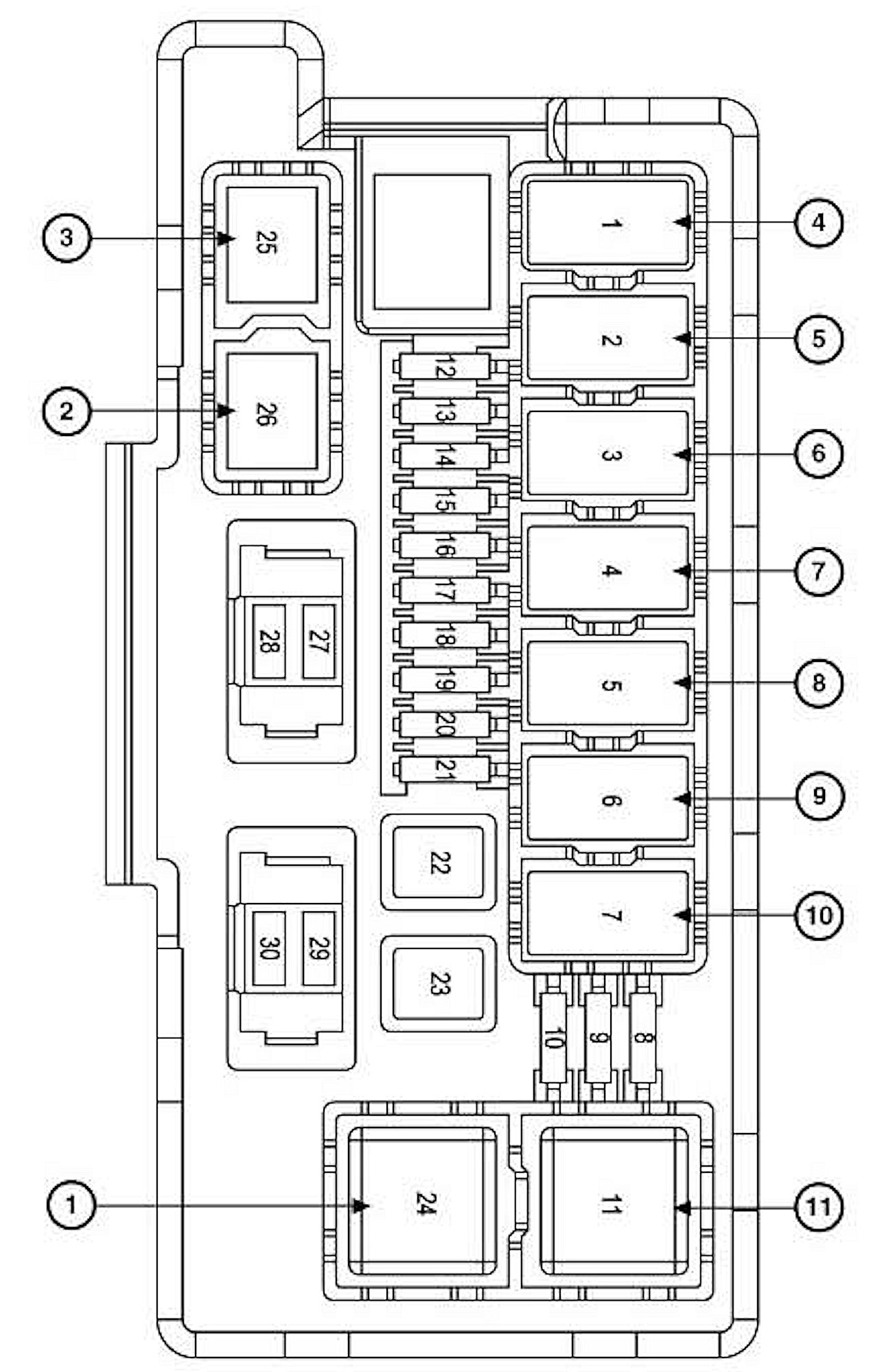

Integrated Power Module:

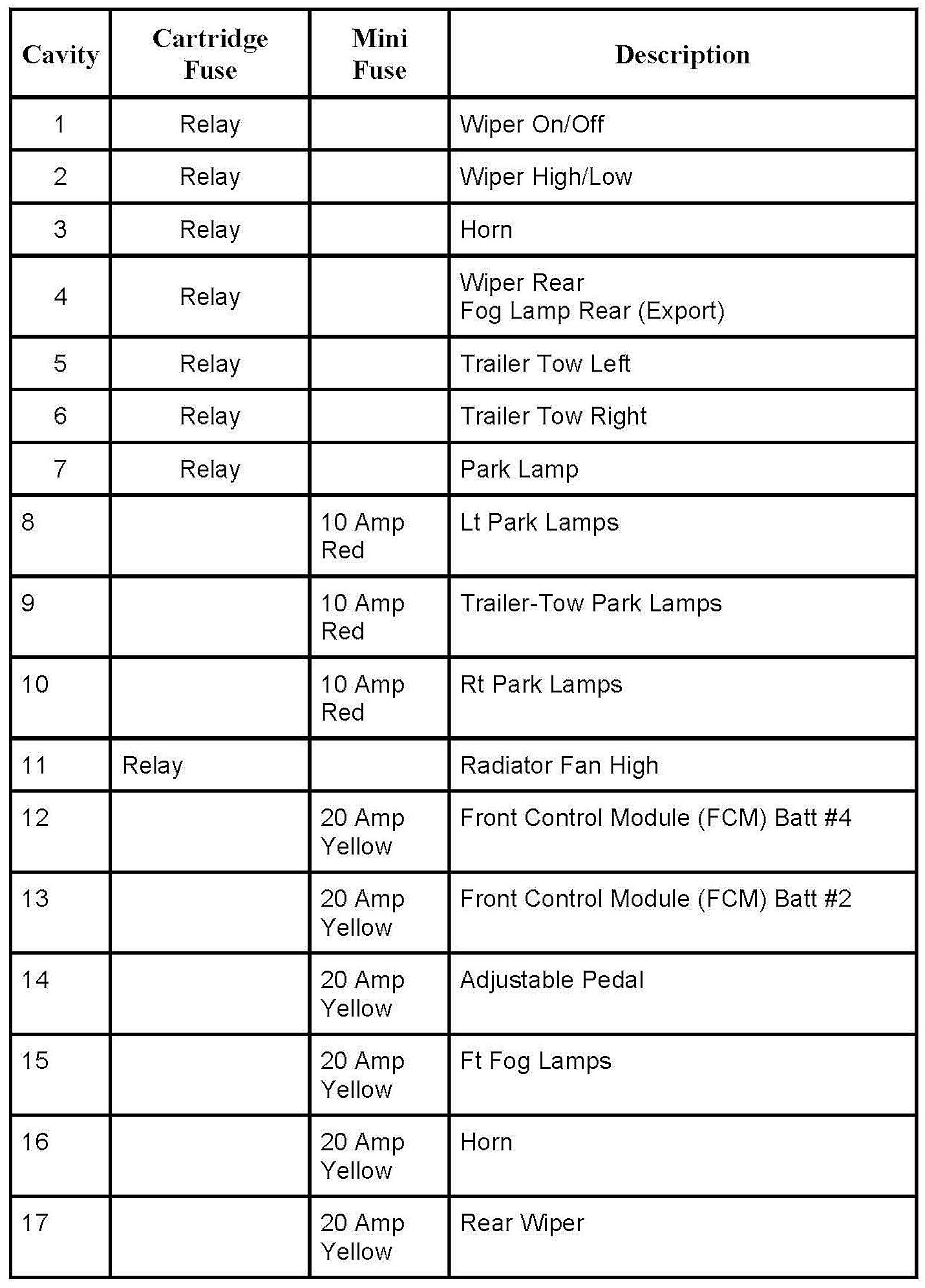

Fuse 1 - 17:

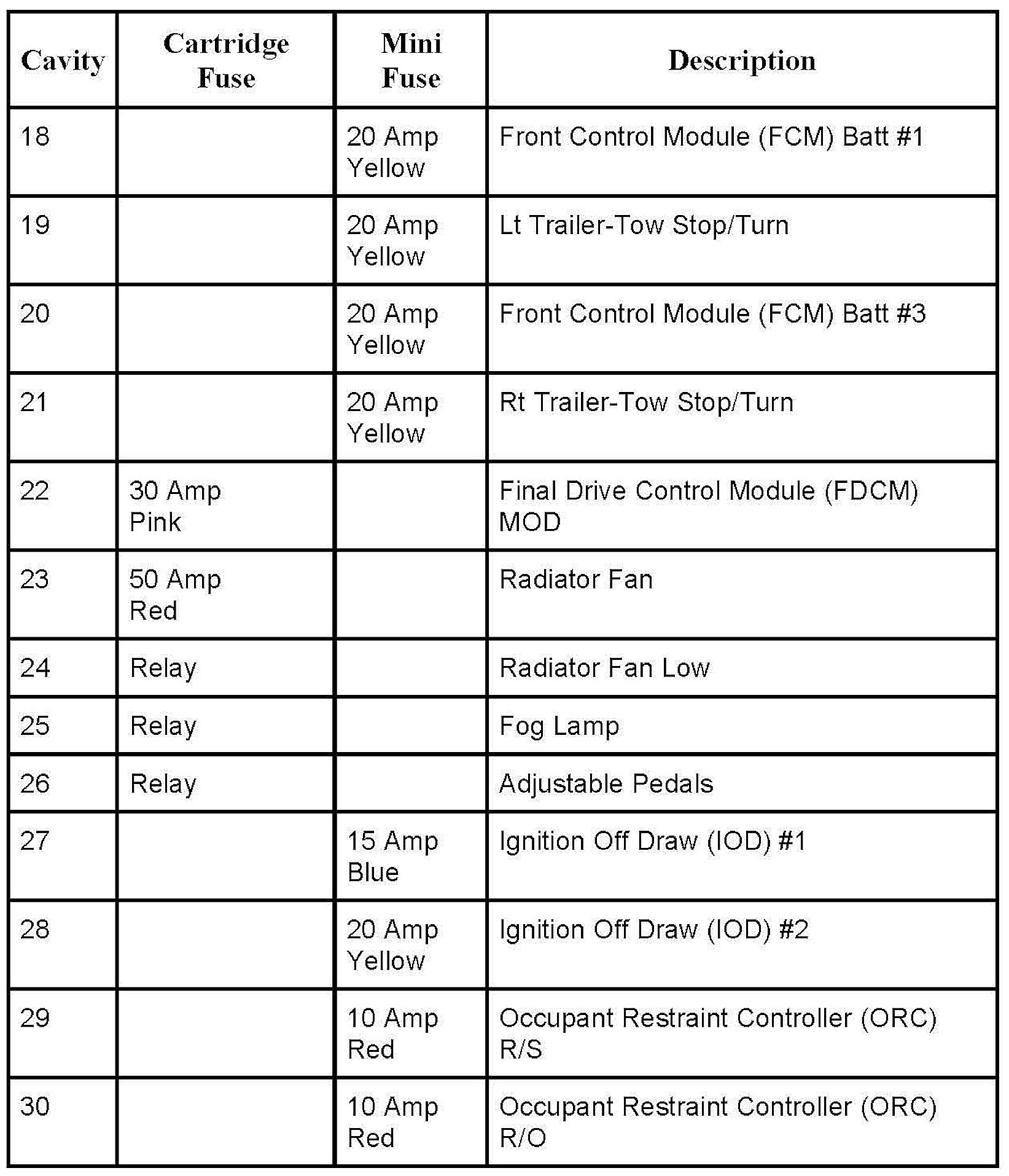

Fuse 18 - 30:
