Satellite Video Module - Installation






INSTALLATION

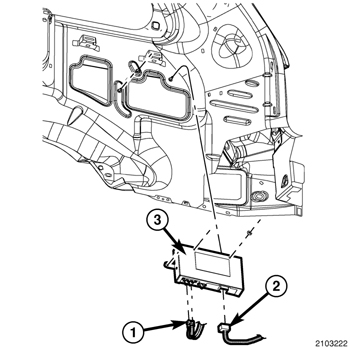

1. Install the satellite video module and mounting fasteners.
2. Connect the antenna (1) and electrical connector (2).
3. Install the right rear quarter trim panel. C-Pillar Trim Panel - Installation.
4. Connect the battery negative cable.
