RELAY, Auto Shut Down: Installation: Installation

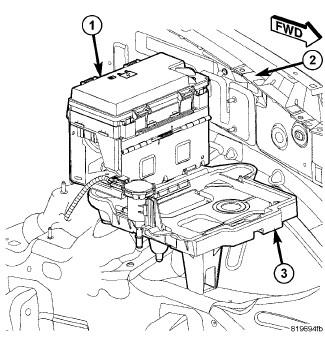

Fig 1: Identifying Power Distribution Center (PDC) & Left Inner Fender
GC0085959Courtesy of CHRYSLER LLC
  1. Refer to TIPM cover for ASD relay location.
  2. Install relay to TIPM (1).
  3. Install cover to TIPM.
