RELAY, Glow Plug: Installation: Installation

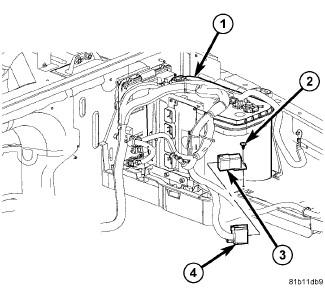

Fig 1: Glow Plug Relay - RHD
GC0130774Courtesy of CHRYSLER LLC
  1. RIGHT HAND DRIVE:
  2. The glow plug relay (3) is located near the front of the battery (1).
  3. Connect electrical connector (4) to relay.
  4. Push mounting pin (2) through relay (3).
  5. Connect negative battery cable.

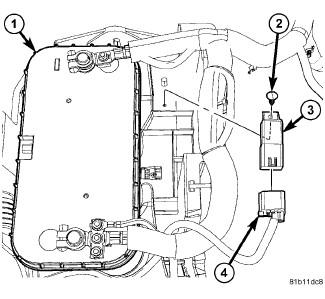

    Fig 2: Glow Plug Relay - LHD
    GC0124645Courtesy of CHRYSLER LLC
  6. LEFT HAND DRIVE:
  7. The glow plug relay (3) is located near the side of the battery (1).
  8. Connect electrical connector (4) to relay.
  9. Push mounting pin (2) through relay (3).
  10. Connect negative battery cable.
