Special Tools

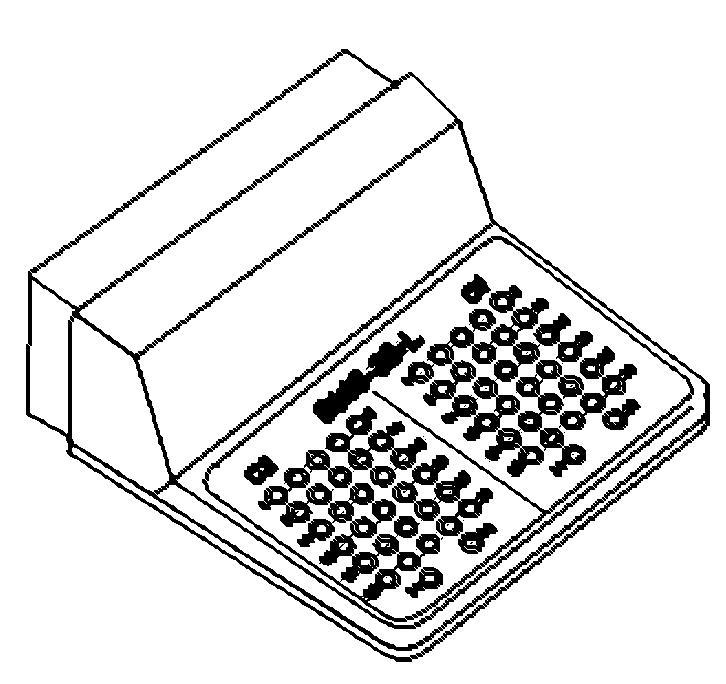

Fig 1: Adaptor, 64-Way - 8443-32-L
GC0131732Courtesy of CHRYSLER LLC

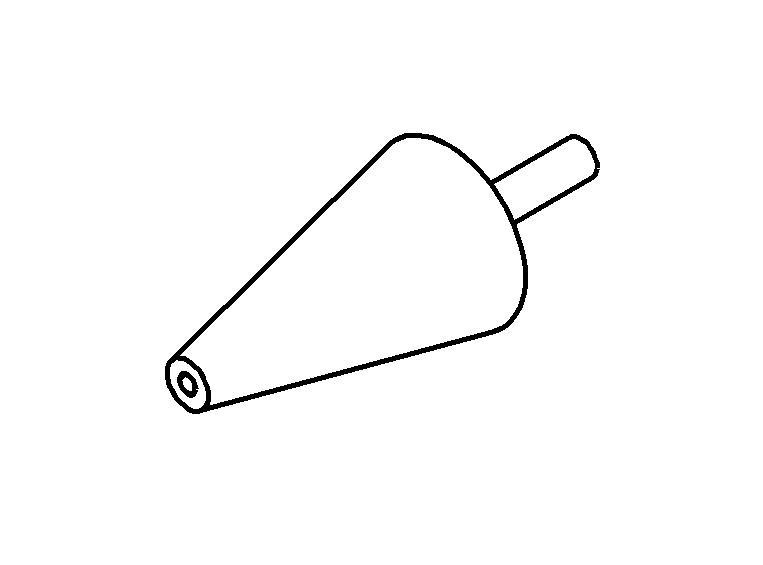

Fig 2: Exhaust Cone - 8404-EC
GC0094895Courtesy of CHRYSLER LLC

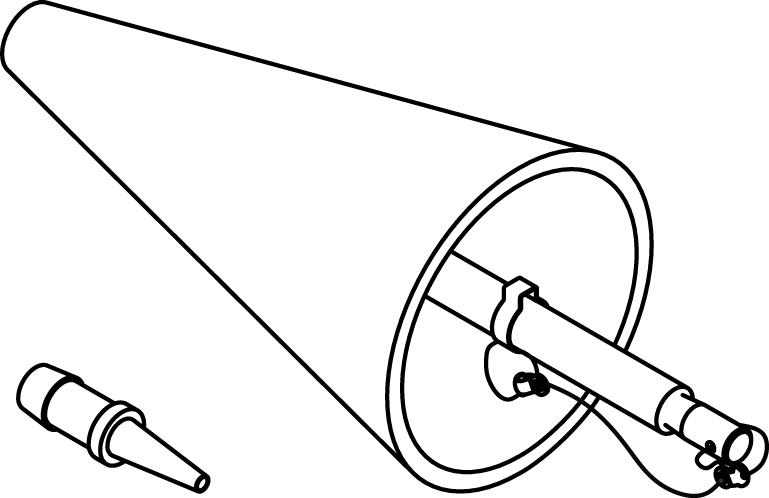

Fig 3: Exhaust Cone - 8404-ECT
GC0094896Courtesy of CHRYSLER LLC

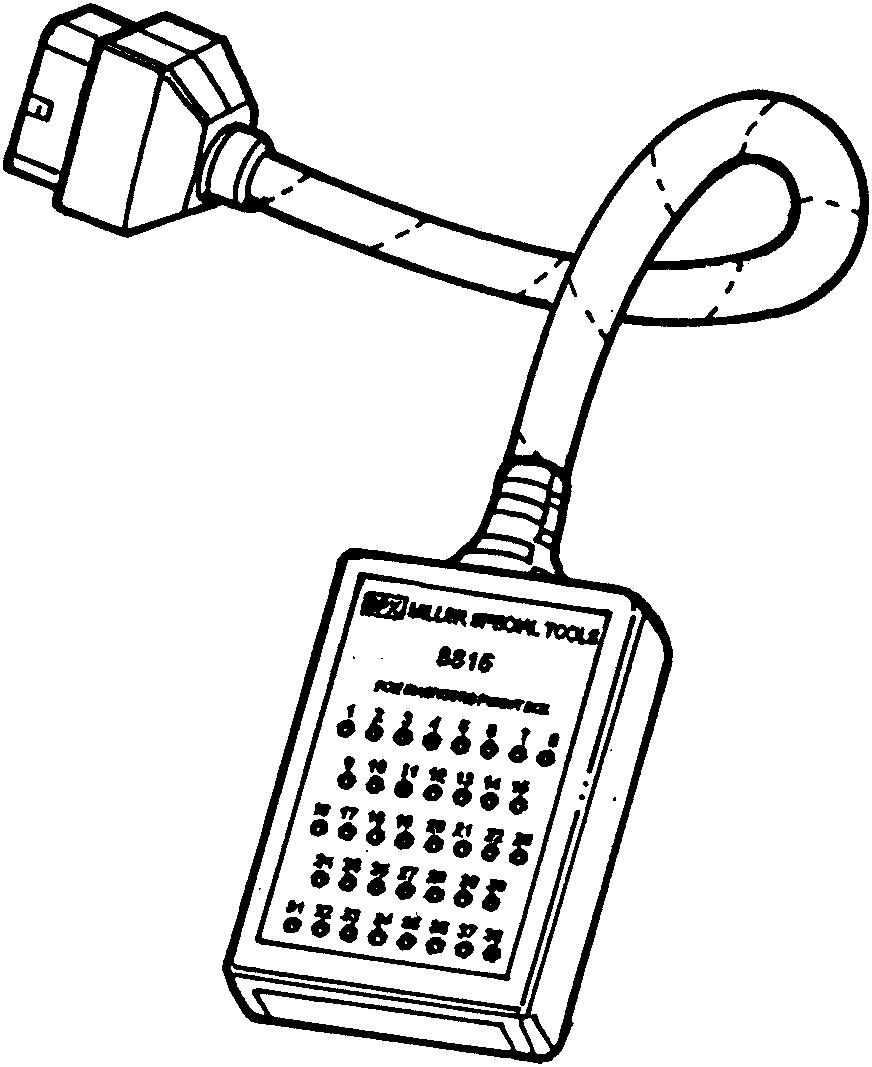

Fig 4: Pinout Box, PCM Diagnostic - 8815
GC0094901Courtesy of CHRYSLER LLC

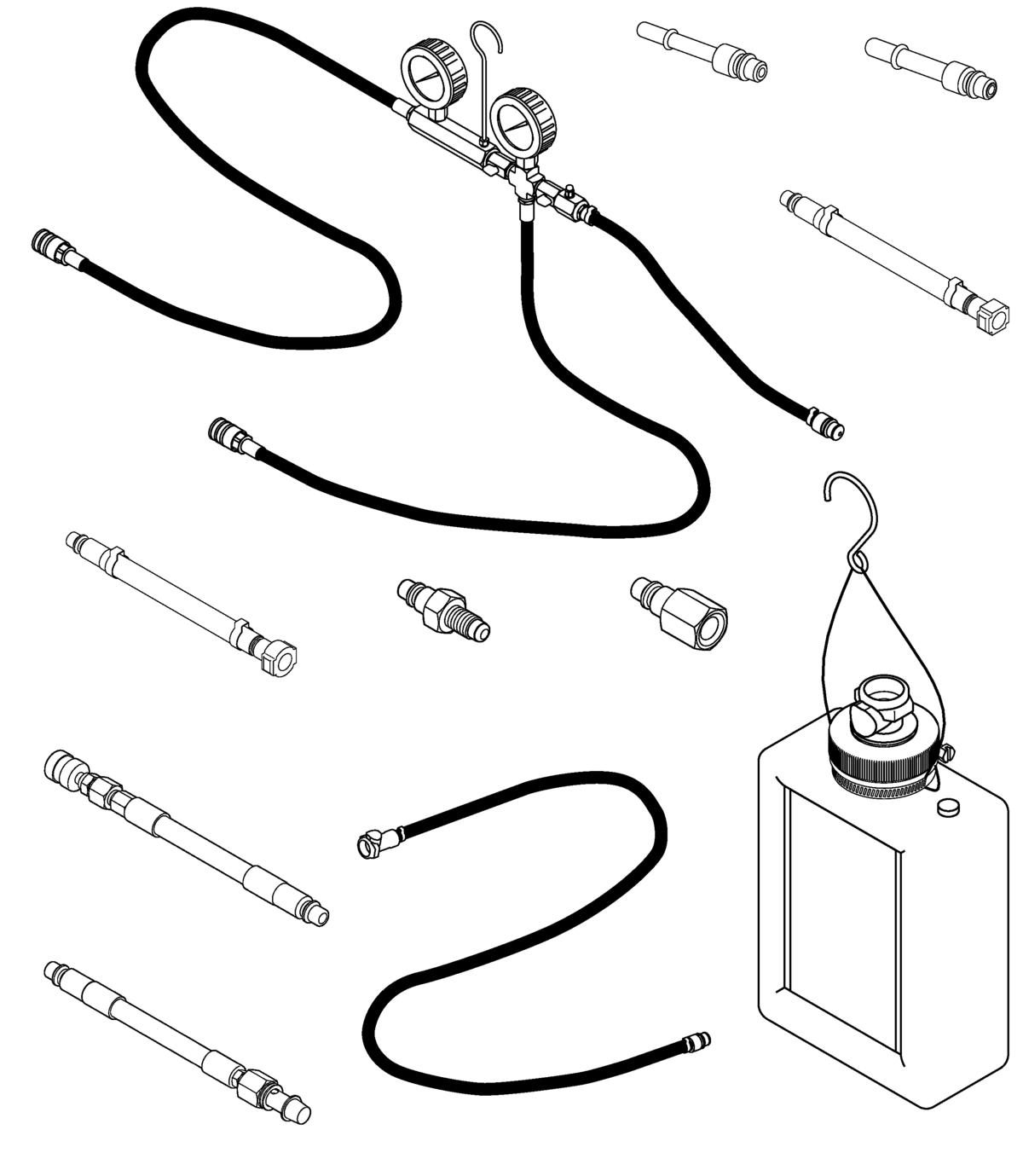

Fig 5: Tester, Fuel Decay - 8978
GC0094903Courtesy of CHRYSLER LLC

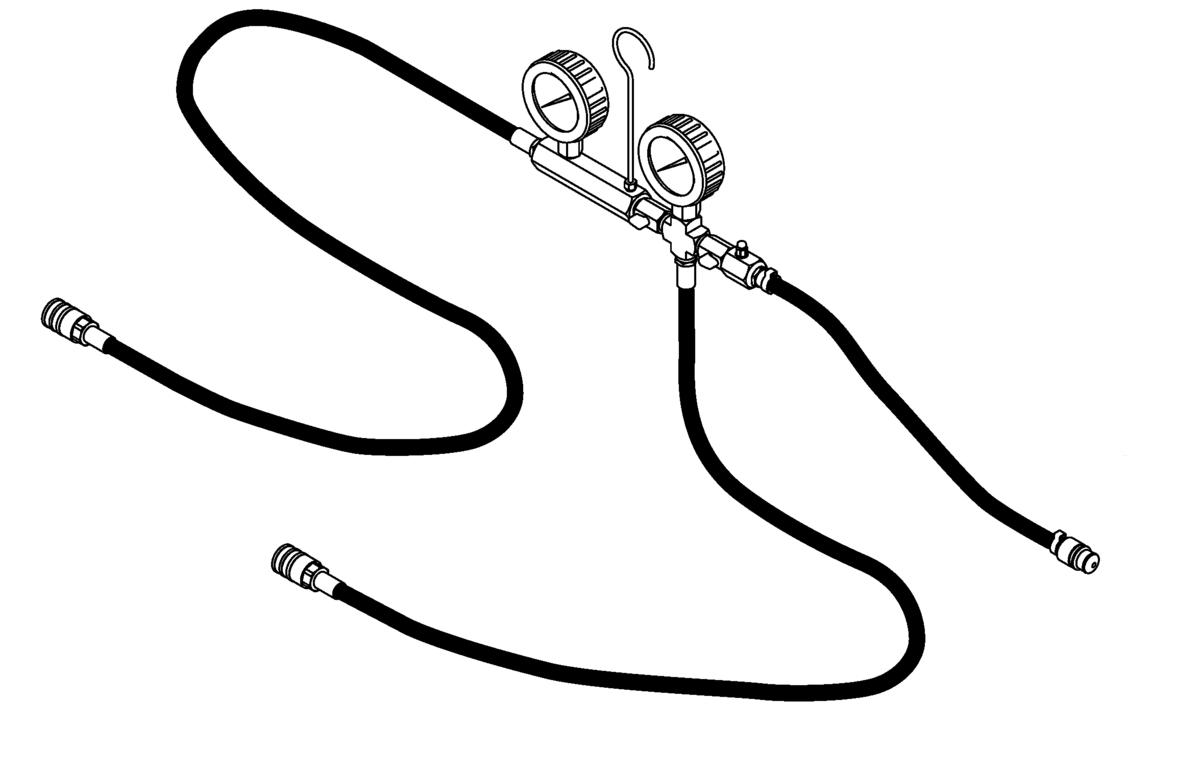

Fig 6: Adapter, Fuel Decay Tester - 8978-1
GC0094923Courtesy of CHRYSLER LLC
