Engine Block Heater - Removal

REMOVAL





1. Remove engine cover.
2. Remove air cleaner inlet.










3. Detach power cord plug from heater.

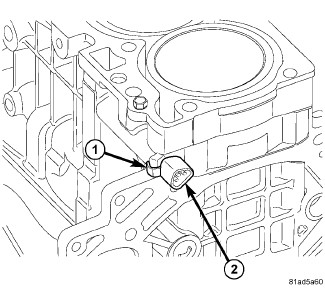

4. Remove retaining clip (1). Remove block heater assembly (2).
