Charging System (Service Information): Generator: Removal: Removal

Fig 1: Air Cleaner Box And Snorkel

Courtesy of CHRYSLER LLC

1. Rotate the two retaining clips (3) and remove the air cleaner fresh air duct (2).
2. Disconnect and isolate negative battery cable at battery.
   Fig 2: Lower Air Dam/Belly Pan

   Courtesy of CHRYSLER LLC
3. Evacuate the A/C system. Refer to Plumbing, Standard Procedure .
4. Remove the right front wheel.
5. Remove the underbody air dam.
   Fig 3: Idler Pulley Location

   Courtesy of CHRYSLER LLC
6. Remove the accessory drive splash shield.

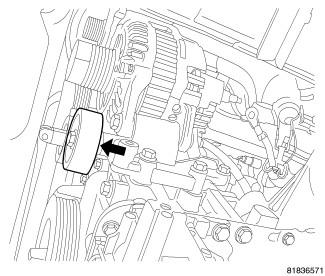

   Fig 4: Idler Pulley Removal/Install

   Courtesy of CHRYSLER LLC
7. Position aside the serpentine belt. Refer to BELT, Serpentine, Removal .
8. Remove the accessory drive idler pulley.
   Fig 5: A/C Compressor Relocation

   Courtesy of CHRYSLER LLC
9. Remove the A/C compressor. Refer to COMPRESSOR, A/C, Removal .
   Fig 6: Lower Mounting Bolt

   Courtesy of CHRYSLER LLC
10. Loosen the lower mounting bolt.
    Fig 7: Field Connection

    Courtesy of CHRYSLER LLC
11. Unplug field circuit from generator.
    Fig 8: Battery Cable Connection

    Courtesy of CHRYSLER LLC
12. Remove the B+ terminal nut and wire.
    Fig 9: Upper Mounting Bolt

    Courtesy of CHRYSLER LLC
13. Remove the upper mounting bolt.
14. Remove the generator lower mounting bolt.
    Fig 10: Generator Removal

    Courtesy of CHRYSLER LLC
15. Slide the generator (1) down and out of vehicle.
