SENSOR, Crankshaft Position: Installation: Installation

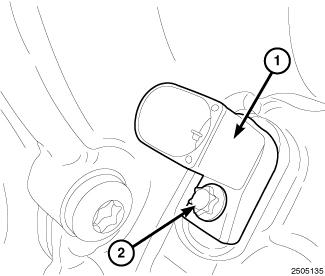

Fig 1: Identifying Crankshaft Position Sensor & Bolt

Courtesy of CHRYSLER LLC

Install the crankshaft position sensor (1). Tighten bolt (2) to 8 N.m (71 in. lbs).

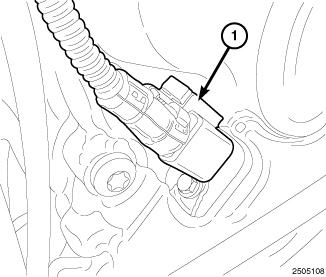

Fig 2: Identifying Crankshaft Position Sensor Harness Connector
Courtesy of CHRYSLER LLC
Connect the crankshaft position sensor harness connector (1).

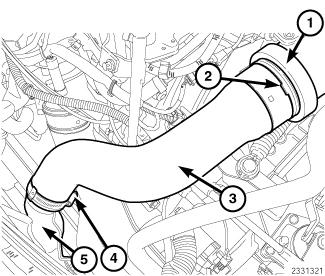

Fig 3: Identifying Upper Charge Air Tube, Lock Ring. Lower Charge Air Tube, Clamp & Charge Air Cooler (Cac) Inlet
Courtesy of CHRYSLER LLC
Connect the lower charge air tube (3) from the charge air cooler (CAC) inlet (5) and securely tighten clamp (4).
Install the lower charge air tube (3) to the upper charge air tube (1) to turbocharger and lock the lock ring in place.
Install the negative battery cable.
