Section 4 (Rear Driveline Module): Removal: Removal

WARNING: This page is about a different variant/trim than selected.

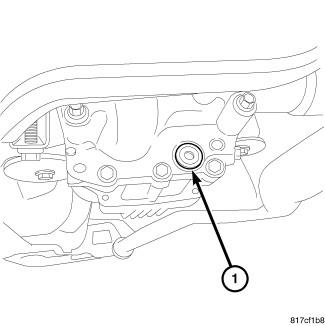

Fig 1: Rear Driveline Module Drain Plug

Courtesy of CHRYSLER LLC

Raise vehicle on a hoist.
Remove the rear tires.
Remove the drain plug (1) and drain the fluid from the rear driveline module.
Remove the rear propeller shaft. Refer to Removal .

Fig 2: Right Sway Bar Nut
Courtesy of CHRYSLER LLC
Remove right side sway bar nut (1) (if equipped).

Fig 3: Left Side Sway Bar Nut
Courtesy of CHRYSLER LLC
Remove left side sway bar nut (1) (if equipped).

Fig 4: Sway Bar
Courtesy of CHRYSLER LLC
Roll sway bar (2) (if equipped) down and out of the way.

Fig 5: Left Side Stay Bar
Courtesy of CHRYSLER LLC
Remove the left side stay bracket bolts (1).

Fig 6: Right Stay Bar
Courtesy of CHRYSLER LLC
Remove the right side stay bracket bolts (1).
Remove the exhaust system up to the catalytic converter. Refer to MUFFLER, Exhaust, Removal .
Support the rear driveline module with a transmission jack.

Fig 7: Rear Bolt AT Axle
Courtesy of CHRYSLER LLC
Remove the rear bolt (1) at the driveline module.

Fig 8: Driveline Module Mounting Bolts
Courtesy of CHRYSLER LLC
Remove the two side bolts (1) at driveline module (3).

Fig 9: Electrical Connector
Courtesy of CHRYSLER LLC
Lower driveline module enough to gain access to the electrical connector and bracket.
Remove the routing bracket bolt.
Unplug the electrical connector (1).
Remove breather hose off of ECC.

Fig 10: Rear Axle Remove And Install
Courtesy of CHRYSLER LLC
Lower the driveline module (1).
Disengage both halfshafts.
Remove driveline module.
Remove the ECC bolts.
Separate the ECC from the RDA.
