Sensor, Accelerator Pedal Position: Installation: Installation

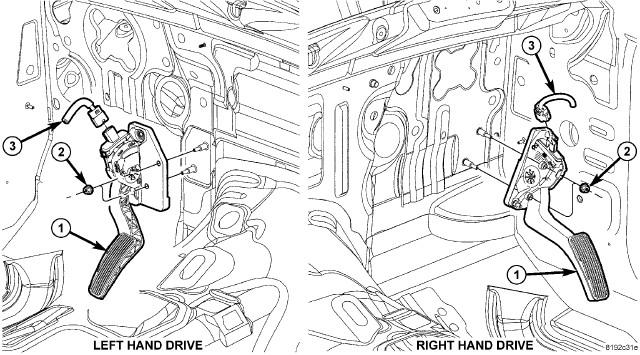

Fig 1: Accelerator Pedal - Without Accelerator Pedal Position Sensor

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

Position accelerator pedal/APPS assembly over two mounting studs.
Install two accelerator pedal mounting bracket nuts (2) and tighten to 11 N.m (97 in. lbs.).
Connect the APPS wire harness connector (3).
Before starting engine, operate accelerator pedal to check for any binding.
