Heated Seat Module - Installation






INSTALLATION

CAUTION: Properly align the tab and retainer for the Heated Seat Module (HSM) to the holes in the instrument panel support, prior to engagement. Failure to follow these instructions may result in damage to the HSM tab and retainer.

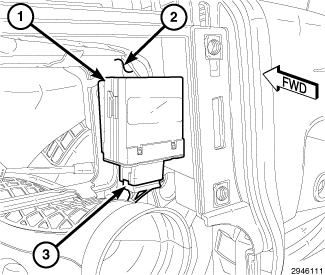

1. Position the Heated Seat Module (HSM) (1) to the instrument panel and connect the wire harness connector (3).
2. Align the tab and push-pin retainer to the holes in the instrument panel support (2) and fully engage the retainer to the support.
3. Install the radio Radio - Installation.
4. Reconnect the negative battery cable.
5. Verify proper heated seat system operation.
