Crankshaft Position Sensor - Removal

REMOVAL

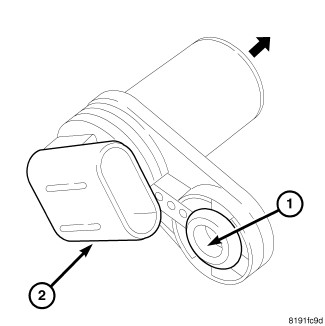

The Crankshaft Position (CKP) sensor (2) is mounted into the right side of the transmission bellhousing (4). It is positioned and bolted into a machined hole.

1. Raise vehicle.
2. Disconnect sensor electrical connector (3).
3. Remove sensor mounting bolt (1).
4. Carefully twist sensor (2) from cylinder block.
5. Check condition of sensor o-ring.
