Case Assembly, Differential: Disassembly: Disassembly
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC
- Remove ring gear.
- Remove roll-pin holding mate shaft in housing.
- Remove pinion gear mate shaft.

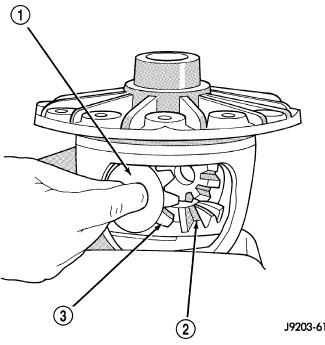

- Rotate differential side gears (2) and remove pinion gears (3) and thrust washers (1).
- Remove differential side gears and thrust washers.
