Switch, Remote Radio: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Refer to WARNING . Disconnect the IBS/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

Fig 1: Steering Wheel & Connector

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Without paddle shift shown in illustration, with paddle shift similar.

From the back of the steering wheel, push the remote radio switch connector (1) through the opening in the steering wheel (2).

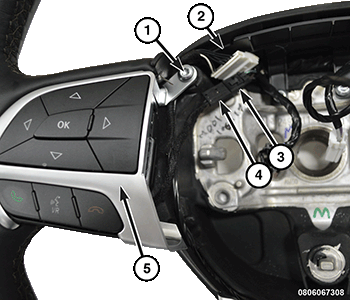

Fig 2: EVIC Switch, Screw & Connectors
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Make sure that the wire harnesses for the remote radio switch (with or without paddle shift unit) and Electronic Vehicle Information Center (EVIC) switch wiring harness line up with the space provided, as noted during removal, for the wire harnesses before fully seating the EVIC switch in the steering wheel spoke armature.
Connect the remote radio switch connector (4) to the steering wheel wire harness connector (3).
Position and carefully seat the EVIC switch (5) and wire harnesses to the steering wheel spoke armature.
Install and securely tighten the front screw (1) for the EVIC switch (5) to the steering wheel (2).

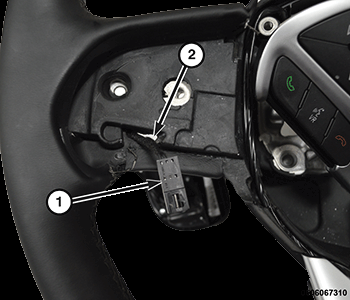

Fig 3: EVIC Switch Screw - Back Of Steering Wheel
Courtesy of CHRYSLER GROUP, LLC
From the back of the steering wheel (1), install the rear EVIC switch screw (2) and securely tighten the screw.

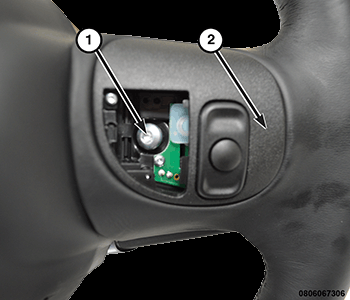

Fig 4: Remote Radio Switch & Screw
Courtesy of CHRYSLER GROUP, LLC
Position and carefully seat the remote radio switch (with or without paddle shift unit) to the steering wheel spoke armature.
Install and securely tighten the screw (1) that secures the remote radio switch (2) (with or without paddle shift unit) to the steering wheel spoke armature.

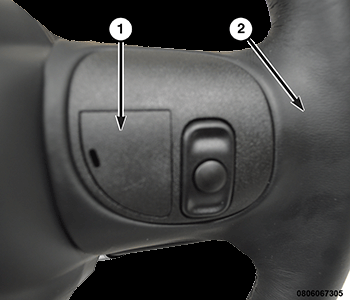

Fig 5: Steering Wheel & Remote Radio Switch Cover
Courtesy of CHRYSLER GROUP, LLC
Install the remote radio switch cover (1) (with or without paddle shift unit). Make sure that the cover is snapped securely into place.
Install the Driver air bag in the steering wheel. Refer to AIR BAG, DRIVER, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
