Generator - Installation

3.6L

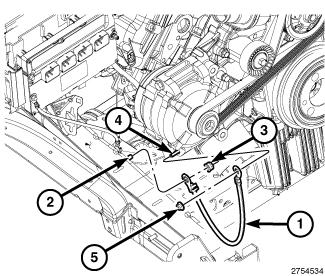

1. Install the generator into the vehicle.
2. Install the three mounting retainers.Tighten to 25 Nm (18 Ft. Lbs.).
3. Install ground wire on mounting stud (4).
4. Install the lower front generator mounting retainer (5).Tighten to 23 Nm (17 Ft. Lbs)
5. Install the serpentine belt Serpentine Accessory Drive Belt - Installation.

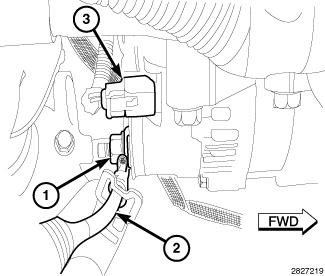

6. Install the B+ terminal to the generator stud.Tighten to 11 Nm (97 In. Lbs.).
7. Plug in the field circuit to the generator.
8. Connect the negative battery cable.
