Intrusion Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

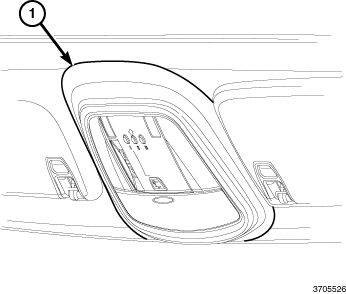

2. Remove the front overhead console (1) Front Overhead Console - Removal.

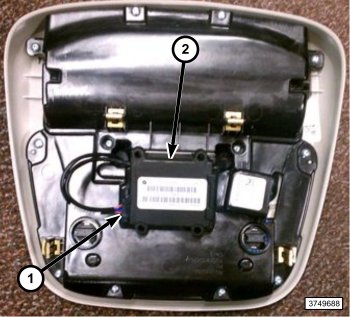

3. Disconnect the motion sensor connector from the intrusion module (2).
4. Unclip the intrusion module from the overhead console and remove.
