Oil Intake Control Valve - Installation

INSTALLATION






NOTE: Ensure that the O-ring is fully seated into the cylinder block.

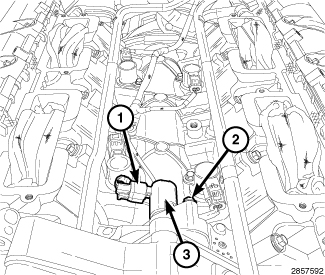

1. Position the oil control valve (3) into the cylinder block.
2. Securely tighten the oil control valve retaining bolt (2).
3. Connect the oil control valve electrical connector (1).
4. Install the intake manifold Intake Manifold - Installation.
