Ignition Capacitor - Installation

INSTALLATION

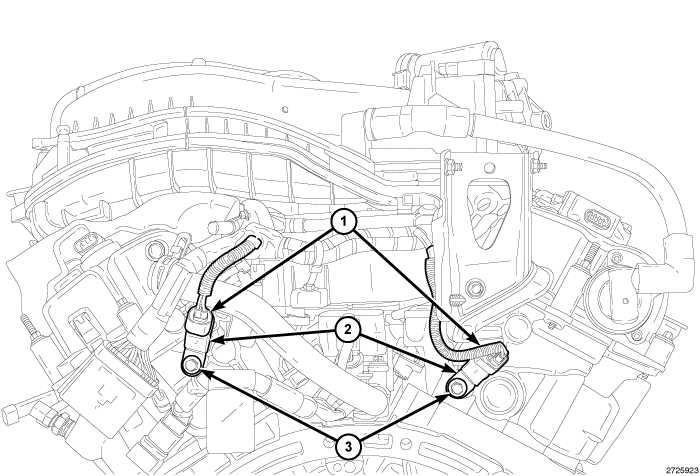

1. Install the ignition capacitor (2) and bolt (3). Tighten the bolt to 10 Nm (89 in. lbs.).
2. Connect the ignition capacitor electrical connector (1).





3. Install the cowl extension silencer (1) Cowl Extension Silencer - Installation.
4. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
