Module, Powertrain Control: Removal: Diesel

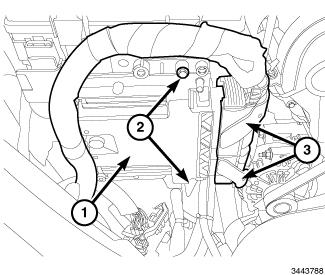

Fig 1: PCM, Harness Connectors & Bolts
GC0146805Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the Powertrain Control Module (PCM) wire harness connectors (3).
  3. Remove bolts (2) and the PCM (1).
