Exhaust Temperature Sensor 1/2

Fig 1: Exhaust Temperature Sensor
GC0146437Courtesy of CHRYSLER GROUP, LLC
  1. Install the exhaust temperature sensor (1) and tighten to 47 N.m (35 ft. lbs.).

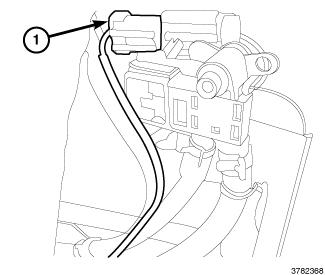

    Fig 2: Exhaust Temperature Sensor Connector
    GC0146438Courtesy of CHRYSLER GROUP, LLC
  2. Connect the exhaust temperature sensor wire harness connector (1).
  3. Install the transmission skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
  4. Connect the negative battery cable.
