Windshield - Removal

REMOVAL

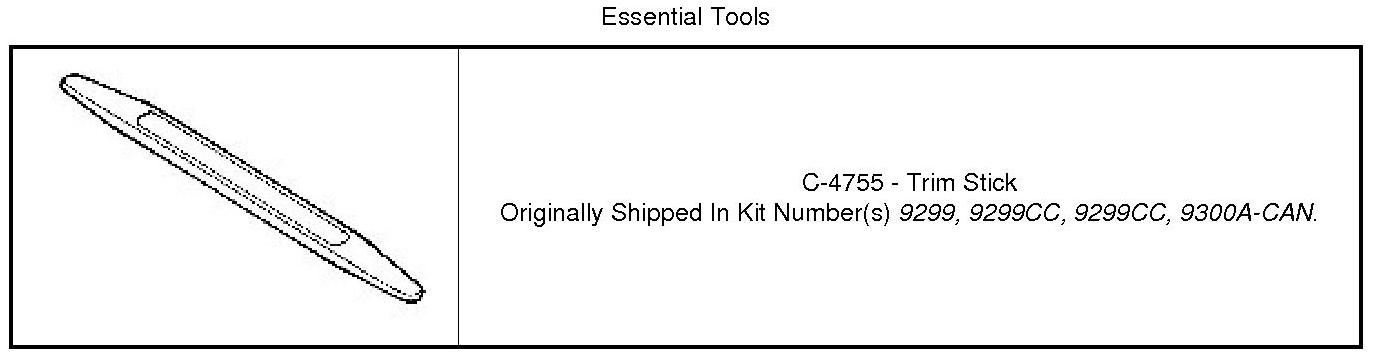

Special Tools:






1. Before proceeding with the following repair procedure, review all warnings and cautions Service Precautions.
2. Remove inside rear view mirror, Interior Rearview Mirror - Removal.
3. Remove the wiper arms, Service and Repair.




4. Remove the hood seal (3).
5. Use a trim stick or equivalent, separate the cover assembly from the a-pillar.
6. Remove the four push pins (2) and remove the cowl grille (1) from the body (4).





7. Using a trim stick or equivalent, remove the push pin (1).
8. Remove the windshield A-pillar molding (2) and clips (3) from the windshield A-pillar.





9. Cut urethane bonding from around windshield using a suitable sharp cold knife. A pneumatic cutting device can be used if available.
10. Remove windshield from vehicle.
