Engine Block: FLEXPLATE: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

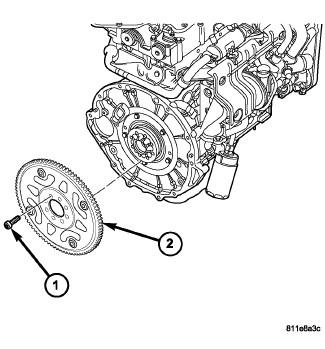

Fig 1: Flex Plate
GC0086431Courtesy of CHRYSLER LLC
  1. Remove the transmission. Refer to Transmission and Transfer Case/Automatic - 42RLE - Removal
  2. Remove the bolts (1) and then the flexplate (2).
