Sensor, Camshaft Position: Removal: 2.4L

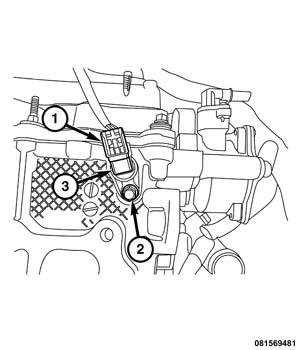

Fig 1: Connector, Mounting Bolt & Camshaft Position Sensor
GC0156125Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative battery cable.
  2. Disconnect electrical connector at sensor (1).
  3. Remove mounting bolt (2).
    Fig 2: Cam Sensor
    GC0082375Courtesy of CHRYSLER GROUP, LLC
  4. Remove the exhaust cam sensor (3).
