Dimension Illustrations

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION FIGURE
FRAME DIMENSIONS - PLAN VIEW Refer toFig 1.
FRAME DIMENSIONS - SIDE VIEW Refer toFig 2.

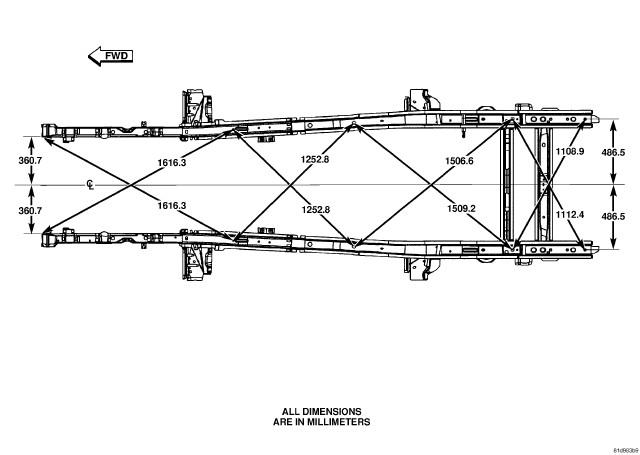

Fig 1: Frame Dimensions - Plan View
GC0100872Courtesy of CHRYSLER GROUP, LLC

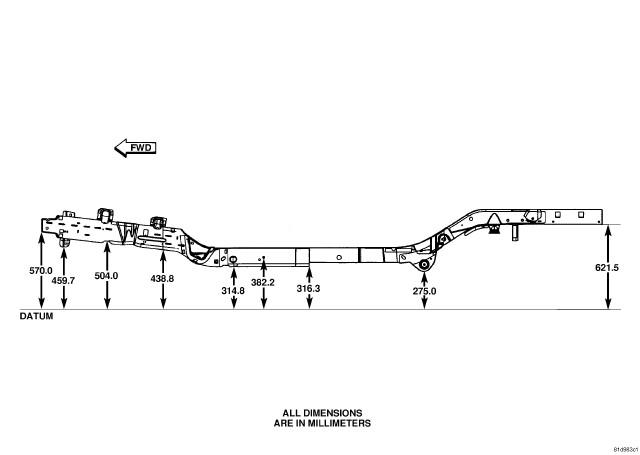

Fig 2: Frame Dimensions - Side View
GC0100873Courtesy of CHRYSLER GROUP, LLC
