Air Test

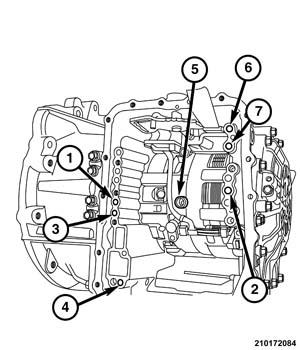

Fig 1: Air Test Port Locations

Courtesy of CHRYSLER GROUP, LLC

1= 3-5-Reverse Clutch

2= Overdrive Clutch

3= 2-6 Brake

4= Underdrive Brake

5= Low-reverse Brake

6= To Cooler

7= From Cooler

Before the completion of the transaxle assembly procedure and before installing the valve body, an air test should be performed to determine the condition of the seals in the clutch and brake pistons. Using a rubber tip air nozzle, apply regulated 482 kPa (70 psi) shop air into the ports shown for each clutch or brake.
