Sensor, Oxygen: Installation: Installation

Fig 1: NOx Sensor & O2 Sensor (Sensor 1/1)
GC0157438Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to 50 N.m (37 ft. lbs.).

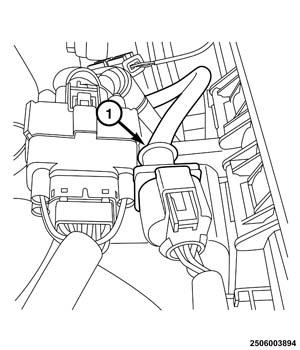

    Fig 2: Oxygen Sensor Harness Connector
    GC0157425Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oxygen sensor harness connector (1).
    Fig 3: Engine Cover
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine cover (1).
  4. Connect the negative battery cable.
