P2111-Electronic Throttle Control System - Unable To Close: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

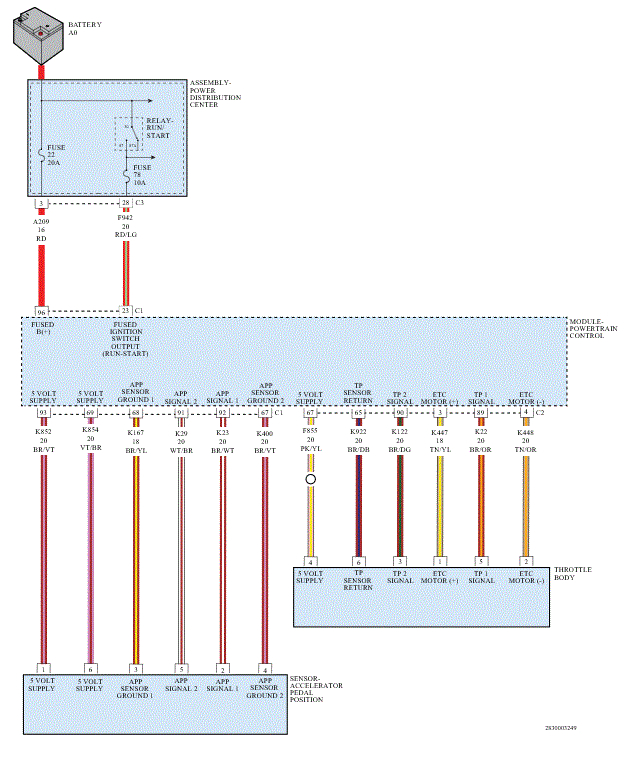

Fig 1: Electronic Throttle Control System Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
