Steering System: Gear: Description: Description

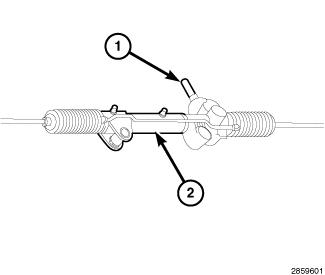

Fig 1: Pinion Shaft & Rack

Courtesy of CHRYSLER GROUP, LLC

A rack and pinion steering gear is made up of two main components, the pinon shaft (1) and the rack (2). The gear cannot be adjusted or internally serviced. If a malfunction or a fluid leak occurs, the gear must be replaced as an assembly.
