Pump, Fuel Injection: Installation: Installation

Fig 1: High Pressure Pinion Holder 10229 & Nut

Courtesy of CHRYSLER GROUP, LLC

Install the high pressure fuel pump gear (2). Tighten nut (1) to 70 N.m (52 ft. lbs.).

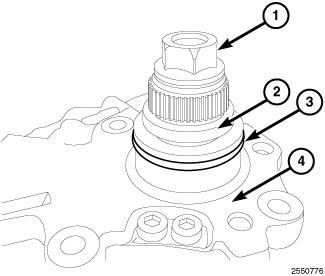

Fig 2: High Pressure Fuel Pump & O-Ring
Courtesy of CHRYSLER GROUP, LLC
Install a new O-ring (3) on the high pressure fuel pump (4).

Fig 3: Drive Gear
Courtesy of CHRYSLER GROUP, LLC
If removed, install the drive gear (1).

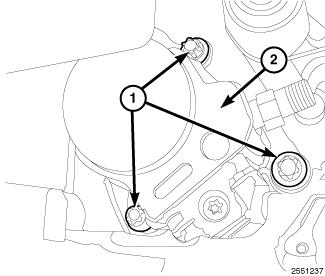

Fig 4: Bolts & High Pressure Fuel Pump
Courtesy of CHRYSLER GROUP, LLC
Install the high pressure fuel pump. Tighten bolts to 20 N.m (177 in. lbs.).

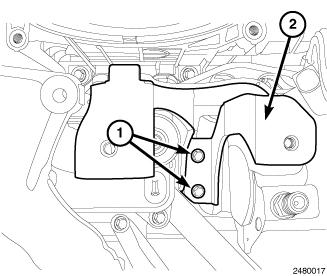

Fig 5: Intake Manifold Support Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the intake manifold support bracket (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).

Fig 6: Fuel Temperature Sensor Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel temperature sensor harness connector (2).

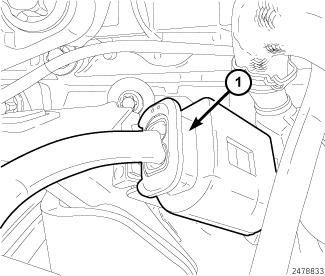

Fig 7: Fuel Quantity Control Valve Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel quantity control valve harness connector (1).
Connect the vacuum hose at the high pressure pump.
Install the fuel supply and return hose to the high pressure pump.

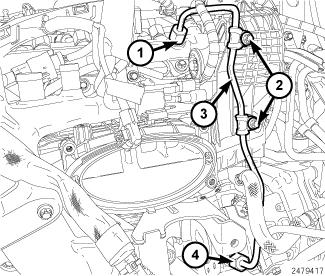

Fig 8: Fuel Rail, Bolts, High Pressure Fuel Tube & Pump
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Any time a high pressure fuel tube has been loosened or disconnected, that high pressure fuel tube must be replaced.
Install a new high pressure tube (3) at fuel rail (1) and high pressure pump (4).
Tighten the high pressure tube (3) at fuel rail (1) and high pressure pump (4) to 7 N.m (62 in. lbs.).
Tighten the high pressure tube (3) at fuel rail (1) and high pressure pump (4) to 33 N.m (24 ft. lbs.).
Install the two bolts (2) securing the high pressure fuel tube and tighten to 9 N.m (80 in. lbs.).
Install the mixing chamber.

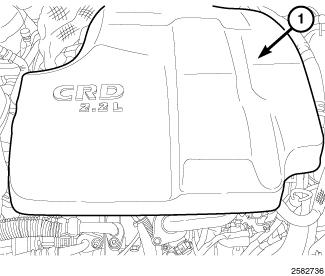

Fig 9: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
