MODULE, Power, Blower Motor: Description: Description

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

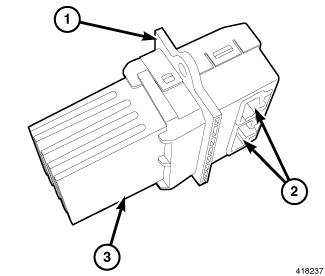

Fig 1: Identifying Blower Power Module

Courtesy of CHRYSLER LLC

A blower motor power module is used on this model when equipped with the Automatic Temperature Control (ATC) heating-A/C system. Models equipped with the Manual Temperature Control (MTC) heating-A/C system use a blower motor resistor, instead of the blower motor power module. See Heating and Air Conditioning/Controls/RESISTOR, Blower Motor - Description .

The blower motor power module is mounted to the rear of the HVAC housing, directly behind the glove box. The blower motor power module consists of a molded plastic mounting plate (1) with an integral connector receptacle (2). Concealed behind the mounting plate is the power module electronic circuitry and a finned aluminum heat sink (3).

The blower motor power module is accessed for service through the glove box opening.
