Automatic Transmission (Service Information): Installation: 2.4L

WARNING:

Hoisting and jack lift points provided in this article are for a complete vehicle. When the transaxle is removed, the center of gravity will shift to the rear of the vehicle, possibly creating an unstable condition. Place safety stands under the rear frame rails behind the rear axle to stabilize the vehicle. Personal injury may result if safety stands are not used.

NOTE:

If installing a new transmission, remove the shipping cap from the vent.

NOTE:

Make sure that the upper starter bolt is inserted into the proper bellhousing bolt hole in the transmission prior to mating the transmission to the engine block.

  1. Install the torque converter to the transmission.
    GC0159913Courtesy of CHRYSLER GROUP, LLC
  2. While guiding the transmission past obstacles, jack (1) the transmission upward until the engine and the transmission are in line.

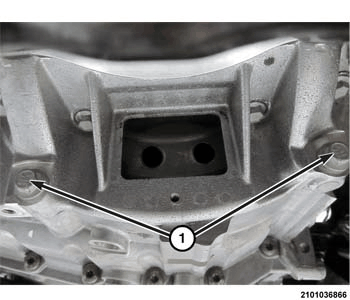

  3. Push the bellhousing against the engine block until the guide pins engage.
    GC0162303Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Ensure that the transmission bell housing and the engine block are flush before installing the bolts. Never utilize the mounting bolts to draw the transmission to the engine.

  4. Install the bellhousing bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0162282Courtesy of CHRYSLER GROUP, LLC

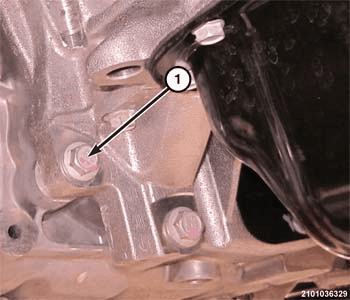

  5. Install the bellhousing bolt (1) near the differential and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0162344Courtesy of CHRYSLER GROUP, LLC

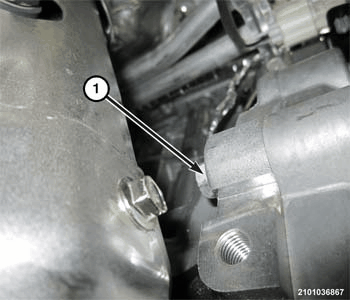

  6. Install the bellhousing bolt (1) next to the catalytic converter and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0159970Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Shown with fascia removed for clarity.

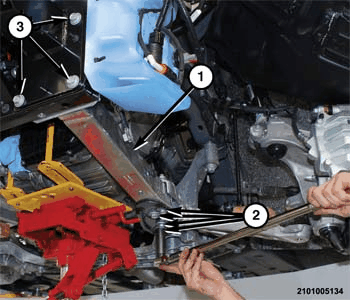

  7. Place the load beam (1) in position on the vehicle.
  8. Install the bolts (3) to hold the front of the load beam (1) to the radiator support panel.
  9. Install the bolts (2) to hold the rear end of the load beam (1) to the suspension cradle.
  10. Tighten the front load beam bolts and rear load beam bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  11. Install the rear engine mount insulator. For 2.4L gas, refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
    GC0159581Courtesy of CHRYSLER GROUP, LLC
  12. Place a wooden block (1) between the load beam and the transmission end cover.
    GC0159913Courtesy of CHRYSLER GROUP, LLC
  13. Lower the high stand (2) and the transmission jack (1) until the transmission rests on the wooden block.
  14. Remove the transmission jack (1) from under the vehicle.
    GC0177028Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is essential that correct length bolts be used to attach the converter to the driveplate. Failure to follow this caution may result in transmission damage.

  15. Through the access cover opening, install the flexplate to torque converter bolts (1) and tighten to the proper torque specification. Rotate the crankshaft to bring each set of bolts into view through the access door. Refer to TORQUE SPECIFICATIONS .
    GC0176954Courtesy of CHRYSLER GROUP, LLC
  16. Install the access cover (1) on the oil pan.
    GC0159630Courtesy of CHRYSLER GROUP, LLC

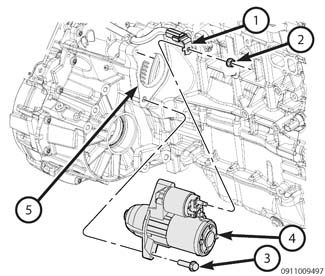

  17. Install the starter bolt (3) holding the starter (4) to the transmission bellhousing and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0159945Courtesy of CHRYSLER GROUP, LLC
  18. Guide the cooler lines (1) in position on the transmission.
  19. Engage the quick couplings to hold the cooler lines (1) to the transmission.
  20. If Front Wheel Drive (FWD), install the exhaust crossunder pipe. Refer to PIPE, EXHAUST CROSSUNDER, INSTALLATION .
  21. If FWD, install the Left Hand (LH) and Right Hand (RH) halfshafts. If equipped with All Wheel Drive (AWD) or Four Wheel Dive (4WD), install the Left Hand (LH) half shaft. Refer to INSTALLATION .
    GC0159835Courtesy of CHRYSLER GROUP, LLC
  22. Place the ground cable in position on the transmission, install the ground cable bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  23. Remove the safety stands from under the rear frame rails behind the rear axle and lower the vehicle.
    GC0162320Courtesy of CHRYSLER GROUP, LLC

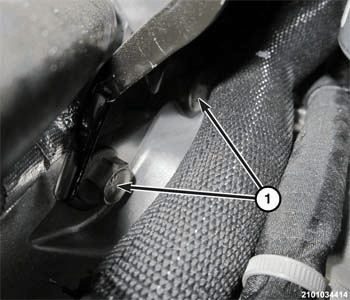

  24. Install upper bolts (1) to hold the transmission bellhousing to the engine block located behind the main engine wire harness and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0162199Courtesy of CHRYSLER GROUP, LLC
  25. Attach the wiring harness push pins (1) to the upper transmission housing.
    GC0155744Courtesy of CHRYSLER GROUP, LLC

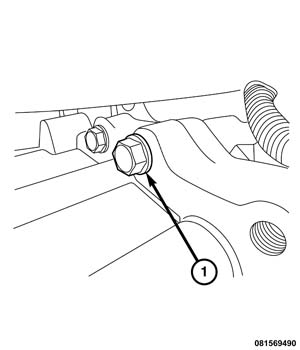

  26. Tighten the upper starter bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0159174Courtesy of CHRYSLER GROUP, LLC
  27. Install the upper bolt (1) to hold the wire harness bracket and transmission bellhousing to the engine block and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  28. Position a floor jack under the transmission.
  29. Raise the transmission until the wood block is free to be removed.
  30. Remove the wooden block (1) from between the transmission end cover and the frame rail load beam.
    GC0159811Courtesy of CHRYSLER GROUP, LLC
  31. Place the transmission mount adaptor block (4) in position on the transmission.
  32. Install the bolts (3) and hidden bolts (2) to hold the transmission mount adaptor block (4) to the transmission and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  33. Install the bolts (1) to hold the upper transmission mount to the adaptor block (4) and tighten to the proper torque specification. For 2.4L Gas, refer to TORQUE SPECIFICATIONS . .
    GC0159235Courtesy of CHRYSLER GROUP, LLC
  34. Engage the transmission solenoid wire harness connector into transmission connector.
  35. Rotate the lock lever (1) clockwise on the transmission solenoid wire harness connector.
    GC0160099Courtesy of CHRYSLER GROUP, LLC
  36. Place the shift cable and housing (2) in position on the mount bracket (1).
  37. Press the shift cable housing (2) into the mount bracket (1) on the transmission.
    GC0159736Courtesy of CHRYSLER GROUP, LLC
  38. Snap the shift cable end (2) in position on the manual lever on the transmission.
    GC0162323Courtesy of CHRYSLER GROUP, LLC
  39. Place the ground cable and the wiring harness bracket in position on the transmission.
  40. Install the ground cable nut (2) and the wiring harness nut (1) to the top of the transmission and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0159257Courtesy of CHRYSLER GROUP, LLC
  41. Engage the wire harness connector (1) into the Transmission Control Module (TCM) connector.
  42. Close the lock on the TCM wire harness connector (1).
  43. If equipped, install the Power Transfer Unit (PTU). Refer to INSTALLATION .
  44. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
  45. Install the Power Distribution Center (PDC). Refer to TRAY, BATTERY, INSTALLATION .
  46. Install the Powertrain Control Module (PCM). Refer to MODULE, POWERTRAIN CONTROL (PCM), INSTALLATION .
  47. Install the battery. Refer to BATTERY, INSTALLATION .
  48. Install the LH front fender splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
  49. Install the front tire and wheel assemblies. Refer to INSTALLATION .
  51. Fill the transmission to the proper level with the specified fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  52. If transmission is replaced, program the Vehicle Identification Number (VIN) into the Transmission Control Module (TCM). Refer to TRANSMISSION CONTROL MODULE PROGRAMMING .
    NOTE:

    Note: Only perform the Valve Body Solenoid Learn procedure if the valve body and/or the TCM was replaced during a repair. Do not perform this procedure if the repair did not require the valve body and/or TCM to be replaced. Do not perform this procedure if the transmission is being replaced.

  53. If the valve body and/or the TCM was replaced, perform Valve Body Solenoid Learn procedure.
  54. If transmission is replaced or internal repairs were made, perform Transmission Verification Test-948TE. Refer to TRANSMISSION VERIFICATION TEST .
  55. Road test the vehicle to verify the repair.
