B1D9B-54-Seat Horizontal Front Stop Not Learned-Missing Calibration: Notes

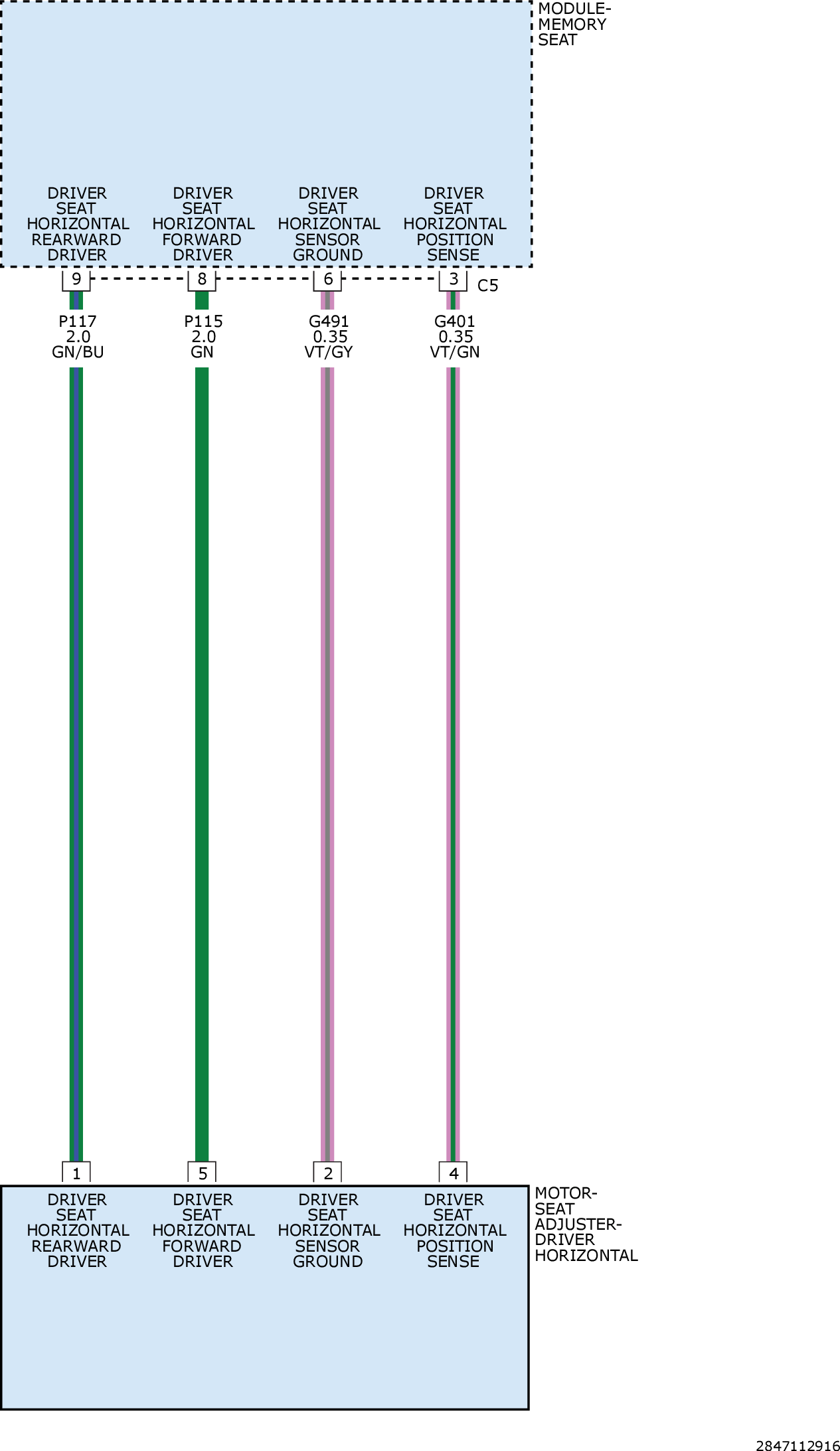

GC0180319

Courtesy of CHRYSLER GROUP, LLC
