TIPM Component Layout And Connector Identification

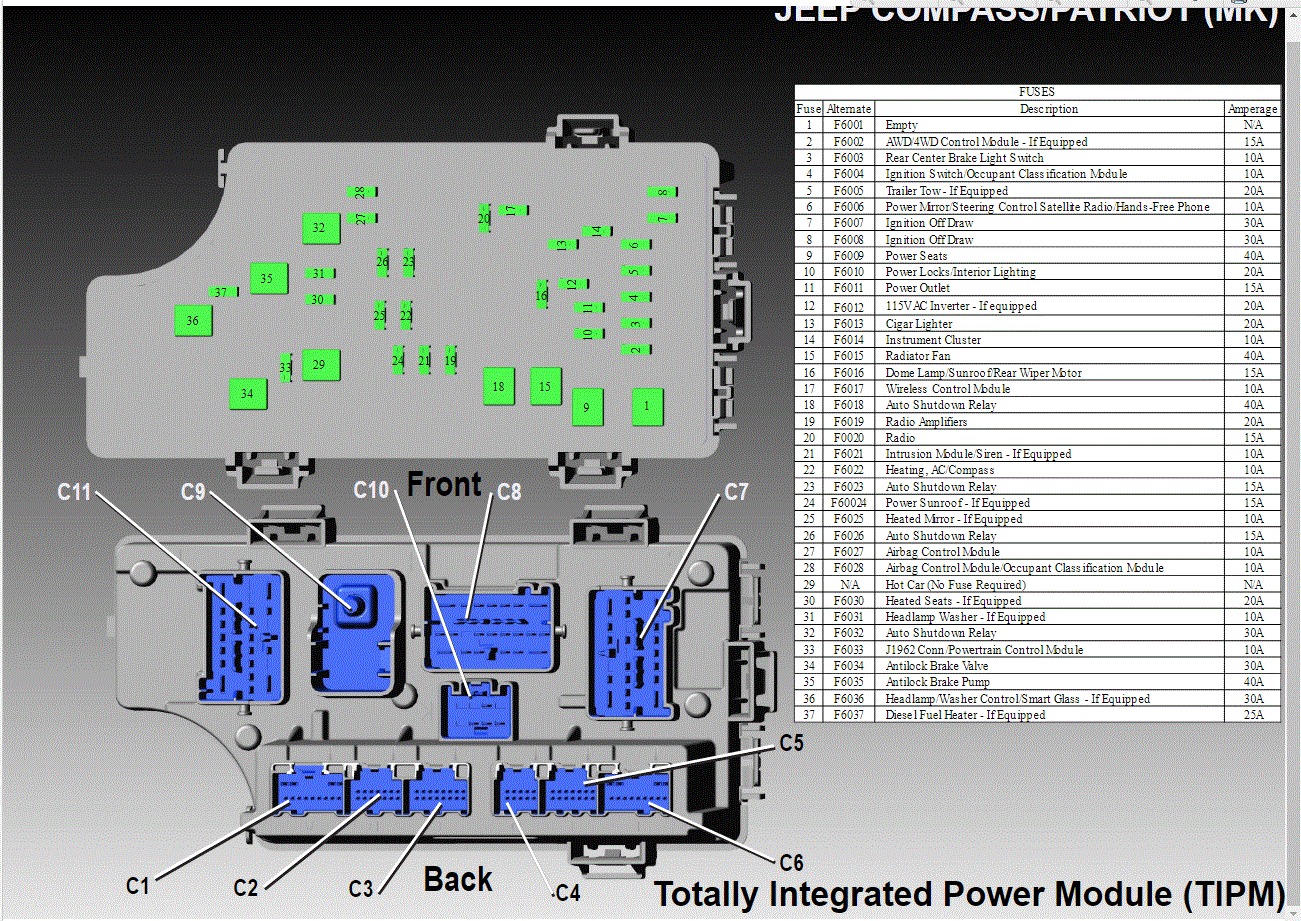

Fig 1: TIPM Layout And Connector Identification

G00565543

Courtesy of CHRYSLER
