Relay, Fuel Heater: Installation

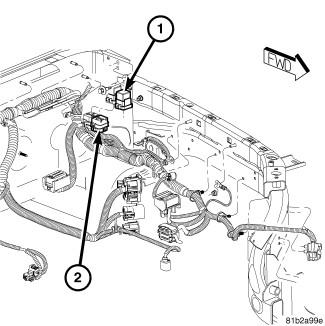

GC0085649Courtesy of CHRYSLER GROUP, LLC
  1. Check condition of relay connector pins for corrosion, etc.
  2. Install the fuel heater relay (1) and securely tighten the bolt.
  3. Connect fuel heater relay wire harness connector (2).
  4. Connect the negative battery cable to battery.
