Relay, Auto Shut Down: Installation
 Courtesy of CHRYSLER GROUP, LLC
|

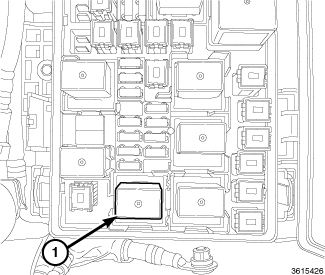

The Automatic Shutdown (ASD) relay (1) is located in the engine compartment within the Totally Integrated Power Module (TIPM). Always refer to the label on the TIPM cover for relay location.
- Install the relay to the TIPM.
- Install the cover to the TIPM.
