Wheel, Steering: Removal

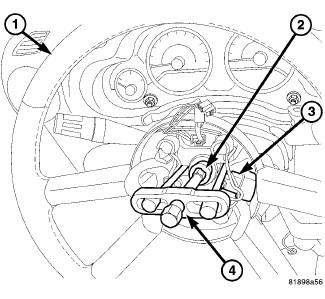

GC0131142Courtesy of CHRYSLER GROUP, LLC
  1. Disable and remove the drivers side airbag. Refer to AIR BAG, DRIVER, REMOVAL .
  2. Disconnect the speed control wiring (3) to allow access for the puller (4).
  3. Partially remove the steering wheel bolt (2) and leave the bolt in the column.
  4. Install steering wheel puller special tool (special tool #L-4407A, Puller, Gear) puller with OTC® 7929A jaws or equivalent (4) using the top of the bolt to push on.
    NOTE:

    Ensure the puller jaws are seated in the pockets of the steering wheel armature.

  5. Remove the steering wheel (1).
