Diesel Engine

Courtesy of CHRYSLER GROUP, LLC

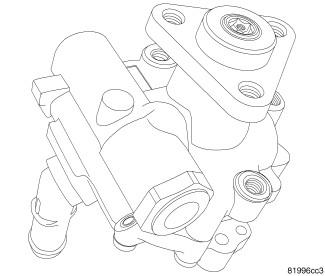

Hydraulic pressure for the power steering system is provided by a belt driven power steering pump. The pump shaft has a bolt on steel drive pulley that is belt driven by the crankshaft pulley. The reservoir is a remote reservoir located by the battery. The power steering pump is connected to the steering gear by the pressure and return hoses.
