Sensor, Exhaust Temperature: Description

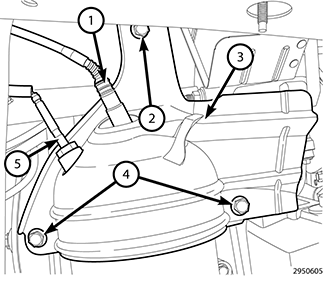

GC0169905Courtesy of CHRYSLER GROUP, LLC

The exhaust temperature sensor (5) is located on the top of the Diesel Oxidation Catalyst (DOC). The Powertrain Control Module (PCM) uses the exhaust temperature sensor to monitor the temperature of the DOC.
