Sensor, Crankshaft Position: Installation
CAUTION:
Before tightening the CKP sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.

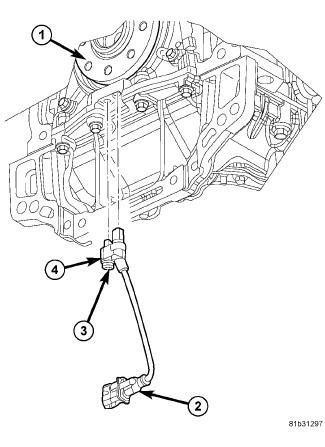

- Install the Crankshaft Position Sensor (CKP) sensor (4) and tighten the bolt (3) to 11 N.m (97 in. lbs.).
- Connect the CKP sensor wire harness connector (2).
- Install CKP access cover and tighten the bolts to 15 N.m (133 in. lbs.).
- Remove support and lower the vehicle.
- Connect the negative battery cable.
