Sensor, Intake Air Pressure: Removal

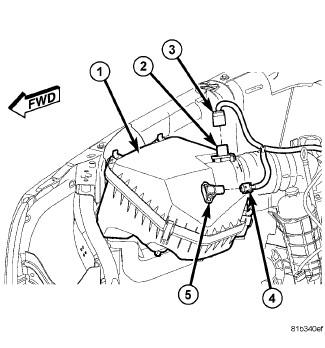

GC0131128Courtesy of CHRYSLER GROUP, LLC

The Intake Air Pressure Sensor (5) is located on the air cleaner cover (1).

  1. Disconnect the negative battery cable.
  2. Disconnect the Intake Air Pressure (IAP) sensor wire harness connector (4).
  3. Remove fasteners and the IAP sensor.
