1.6L Diesel: Installation

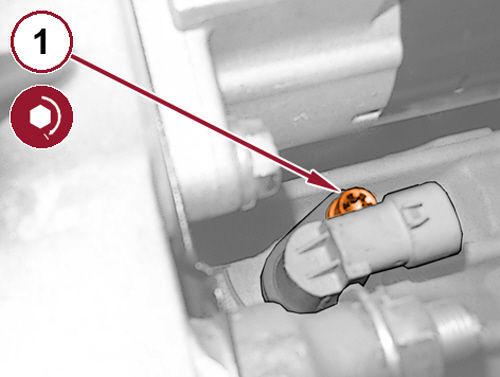

  1. Install the Crankshaft Position (CKP) sensor and tighten the bolt (1) to the proper specification.
  2. Connect the CKP sensor wire harness connector.
  3. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
GC0166207Courtesy of CHRYSLER GROUP, LLC
