Striker, Latch: Installation

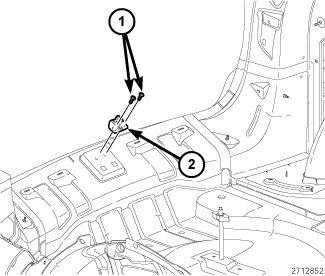

GC0145841Courtesy of CHRYSLER GROUP, LLC
  1. Position the liftgate latch striker (2) to the inside of the liftgate opening lower panel and align using the marks made during removal.
  2. Install and tighten the two screws (1) that secure the latch striker to the liftgate opening lower panel. Tighten the screws to 28 N.m (21 ft. lbs.).
  3. Adjust the latch striker position as necessary to achieve proper liftgate latch operation.

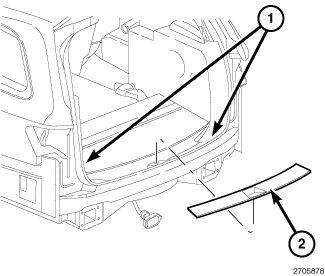

    GC0145827Courtesy of CHRYSLER GROUP, LLC
  4. Install the scuff plate (2). Refer to PLATE, SCUFF, LIFTGATE, INSTALLATION .
  5. Check and adjust the striker if necessary. Refer to STRIKER, LATCH, ADJUSTMENTS .
